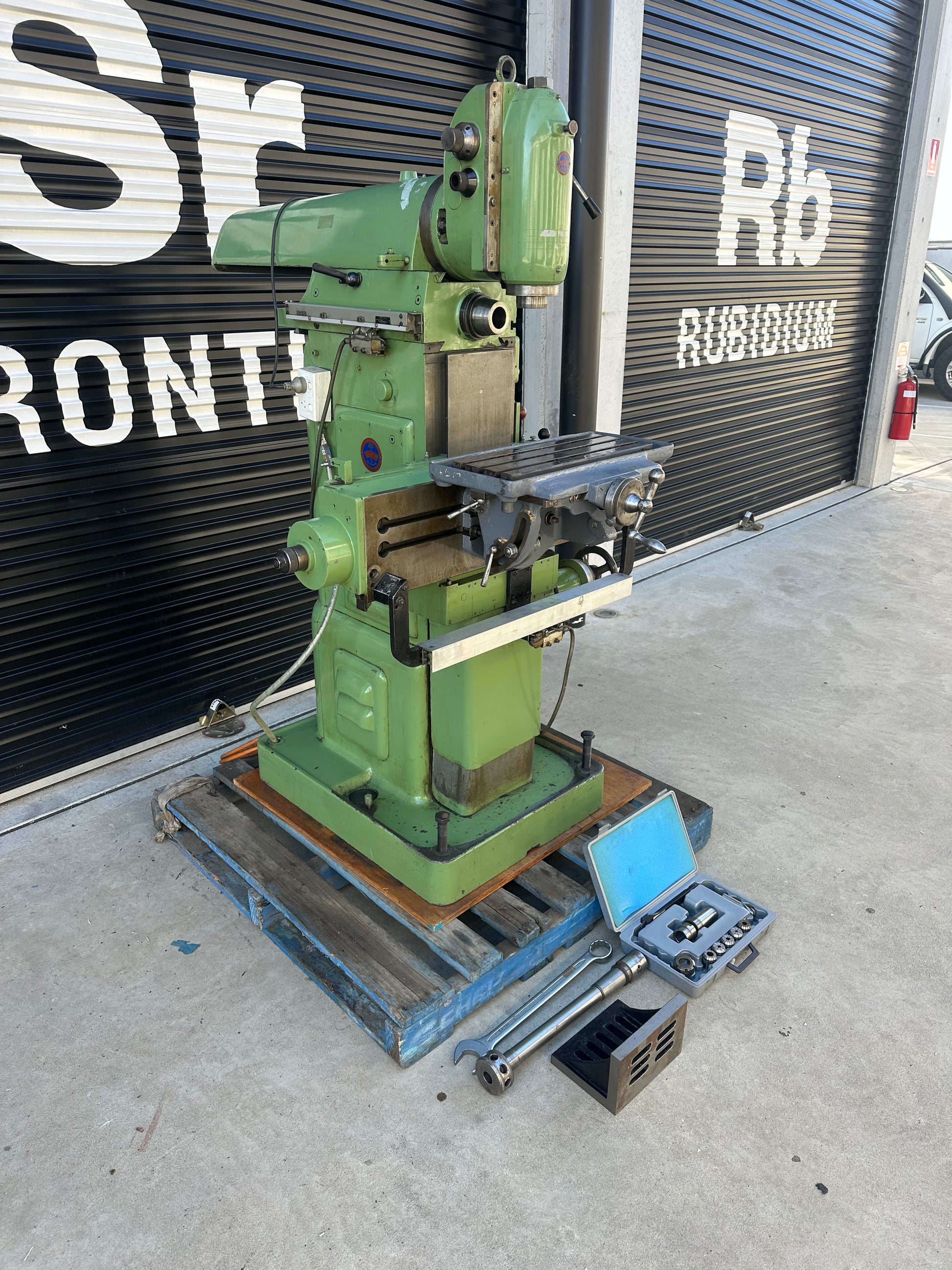

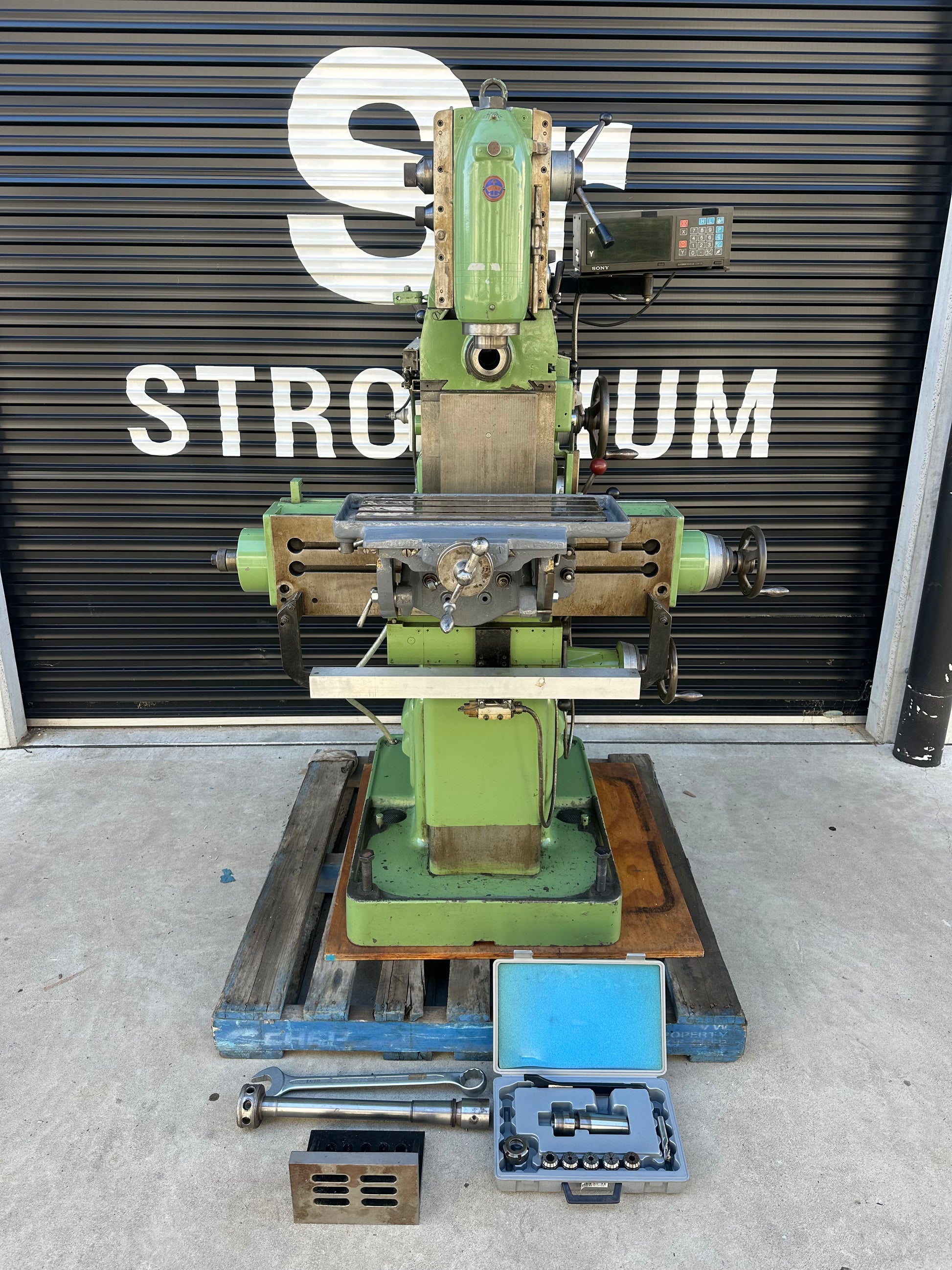

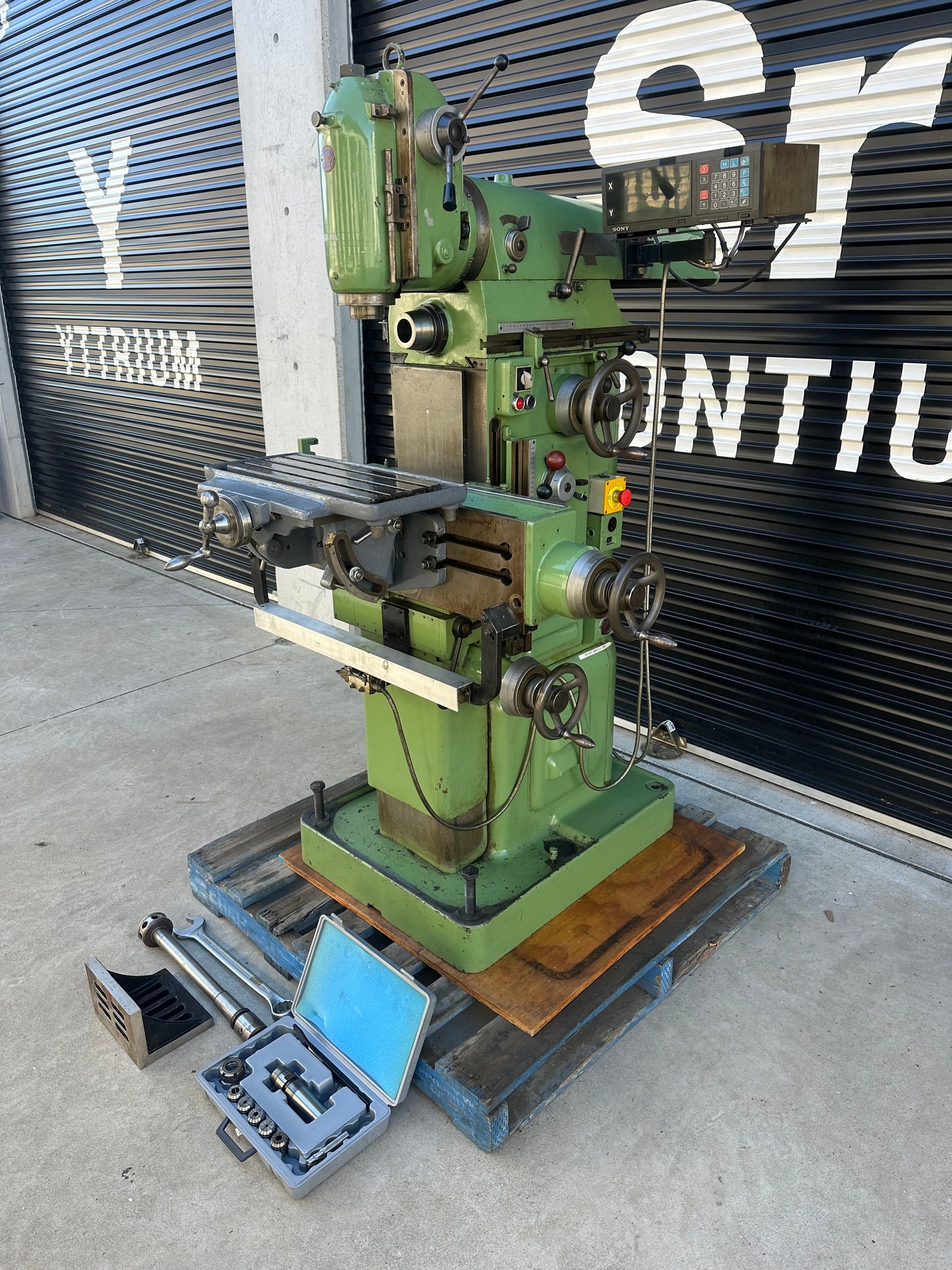

Used Thiel Duplex 158 Toolroom Milling Machine

Used Thiel Duplex 158 Toolroom Milling Machine

Regular price $13,200.00 AUD
Regular price Sale price $13,200.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Used Thiel Duplex 158 Toolroom Milling Machine
- $12,000 + GST

- excellent condition

- 415v (no plug)

- made in Germany

- comparable to a Deckel FP2

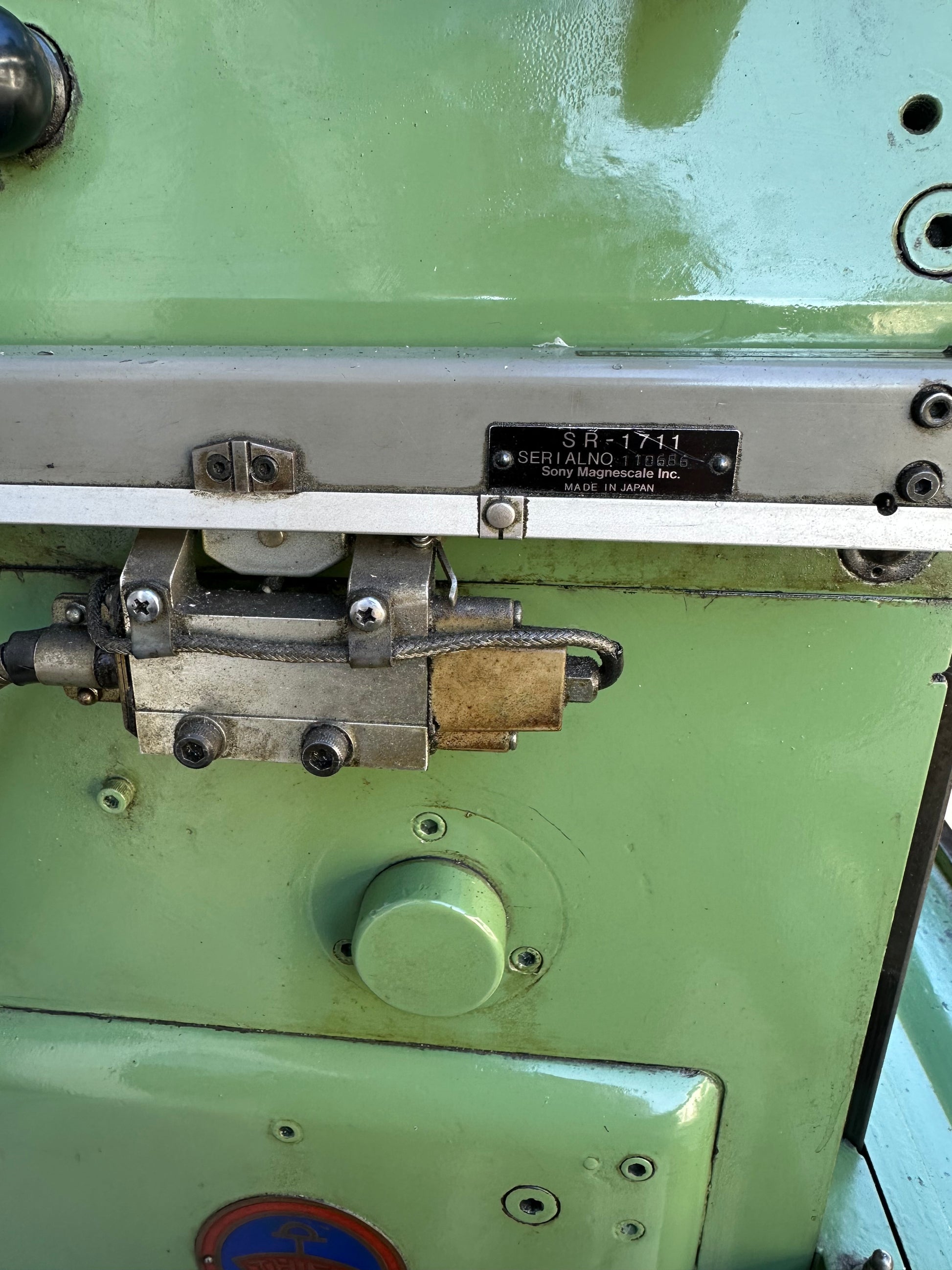

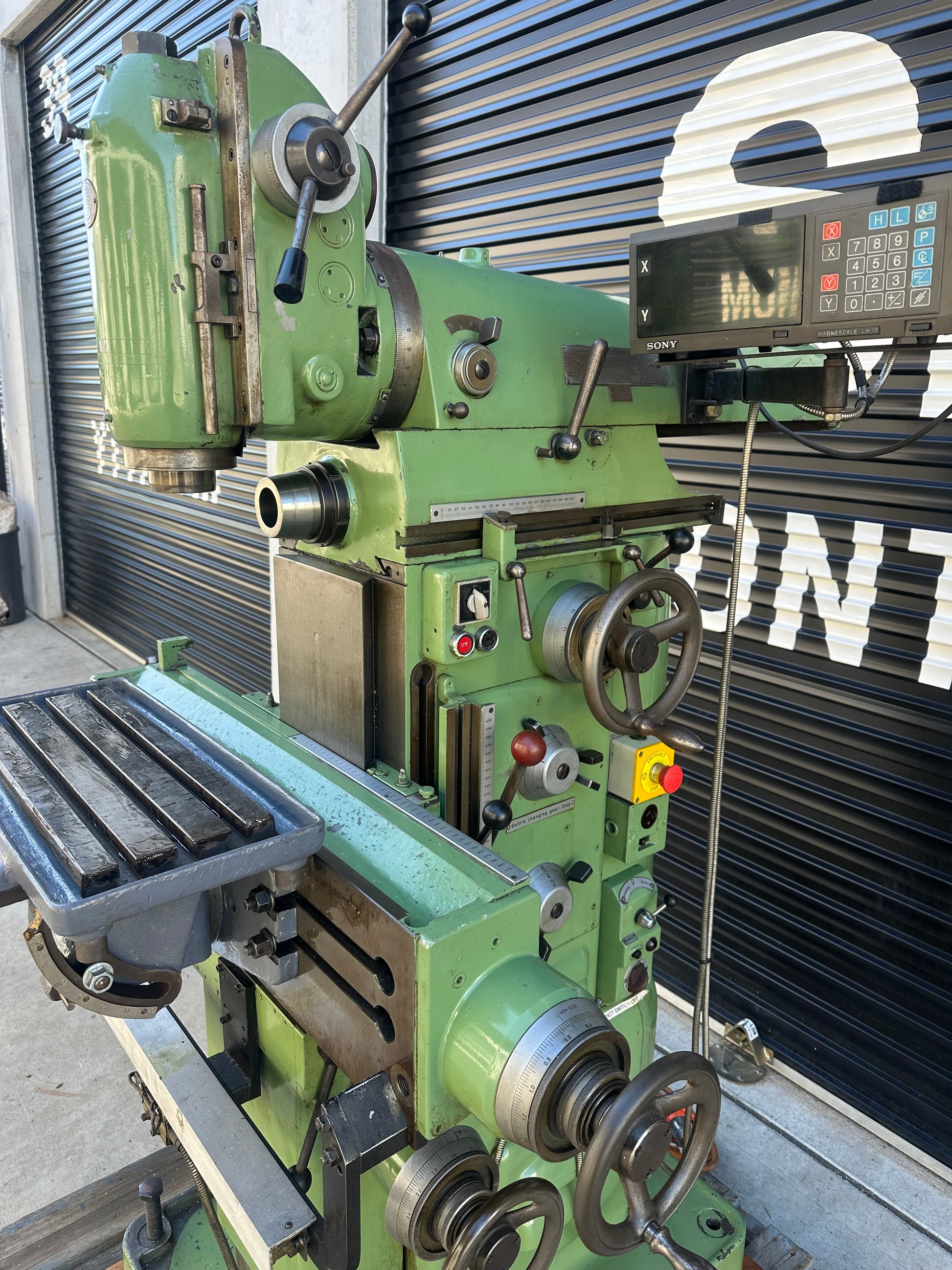

- DRO on x and y axis

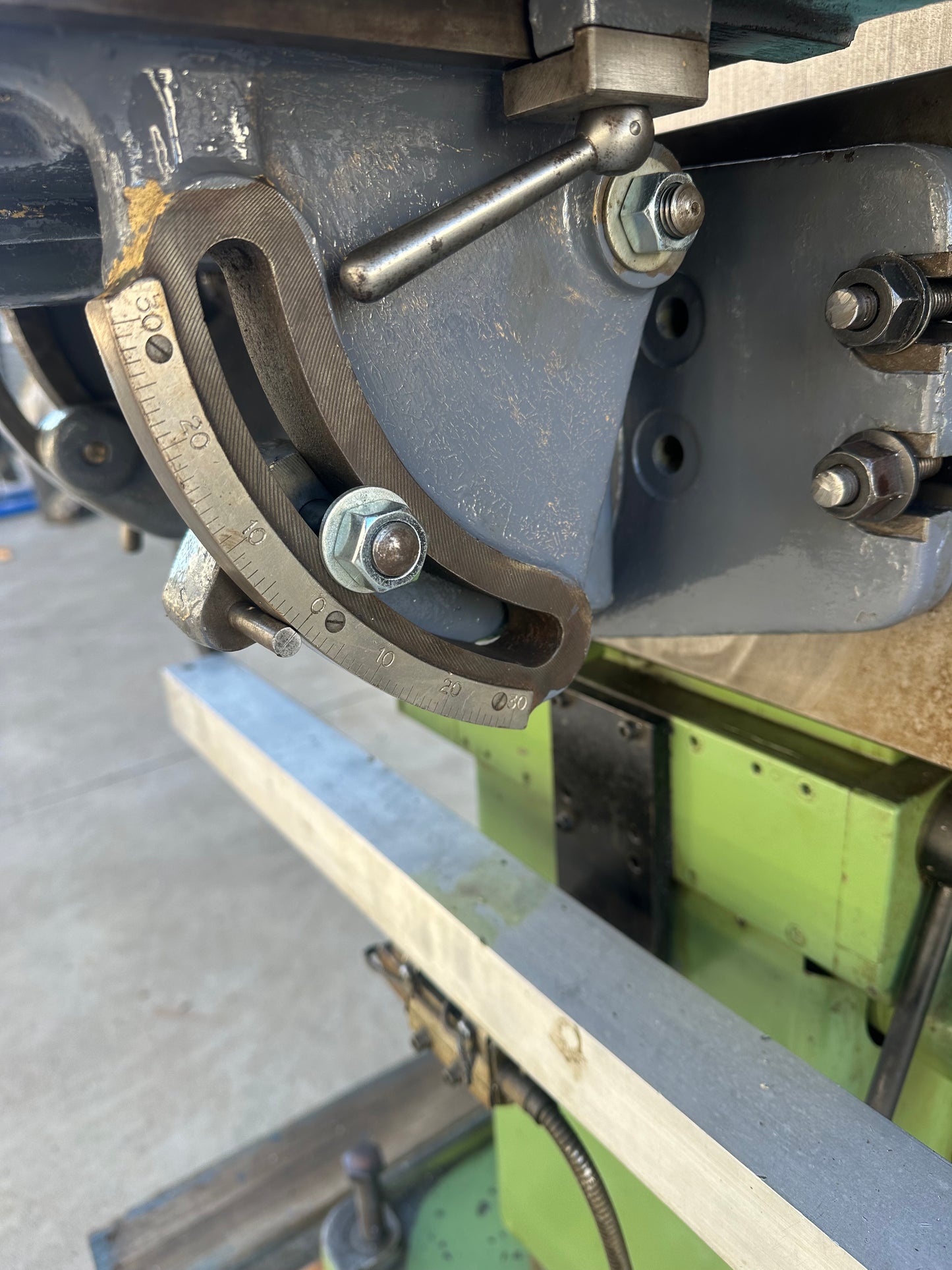

- 462mm wide x 170mm deep combination t-slot table with 140mm travel in y direction, tiltable around 2 axes

- 410mm travel on x direction, 210mm machine travel in y direction, 410mm travel in z direction

- power feeds in all directions

- power feed quill

- metric dials (except combination table)

- forwards and reverse spindle

- quill for drilling operations or fine z adjustments

- MT5 vertical spindle, 90 to 1800 rpm

- MT5 horizontal spindle, 60 to 1200 rpm

- MT5 to MT4 adapter and drawbar included

- MT4 collet chuck and collets

- angle plate

- horizontal spindle drawbar and MT5 to 5c collet adapter included

- loading available, approximately 1200kg

Processing time

Available now!

Shipping information

Pickup only, freight can be organised.

View full details

Payment, Collection, Freight

Collection

All used machinery can be loaded onto your transport unless specified in the description. We have forklifts, and access to Franna cranes for larger machines. Unless specified, all machines are located at our primary address: 8 Spit Island Close, Mayfield West, NSW, 2304.

Freight

We work with a variety of freight companies that service all of Australia. Our most common freight is from Newcastle going south through Sydney, Albury, Melbourne, and through to Adelaide. We also regularly send machinery north to Brisbane, Central QLD, and the Northern Territory. Please call us on 0409 407 703 to assist in gaining a competitive freight quote.

Payment and Finance

Machines and tooling can be purchased directly through the website using PayPal, or your credit card. If you would prefer an invoice please get in touch, we will send an invoice with EFT details for payment.

In the past, we have worked with finance brokers to help you pay for your machinery. If you require this service, please don't hesitate to ask and we can put you in touch with our broker!

Type of Vehicle

Most of our machines are HEAVY! You need the correct vehicle to transport your new machine. We will only load machinery onto the appropriate transport and will not load onto inadequate vehicles. Common transport for small to medium machines (max 2 tonnes) include small trucks, dual axle trailers, and sometimes utes. Larger machines (over 2 tonnes) will require a suitably sized truck.
